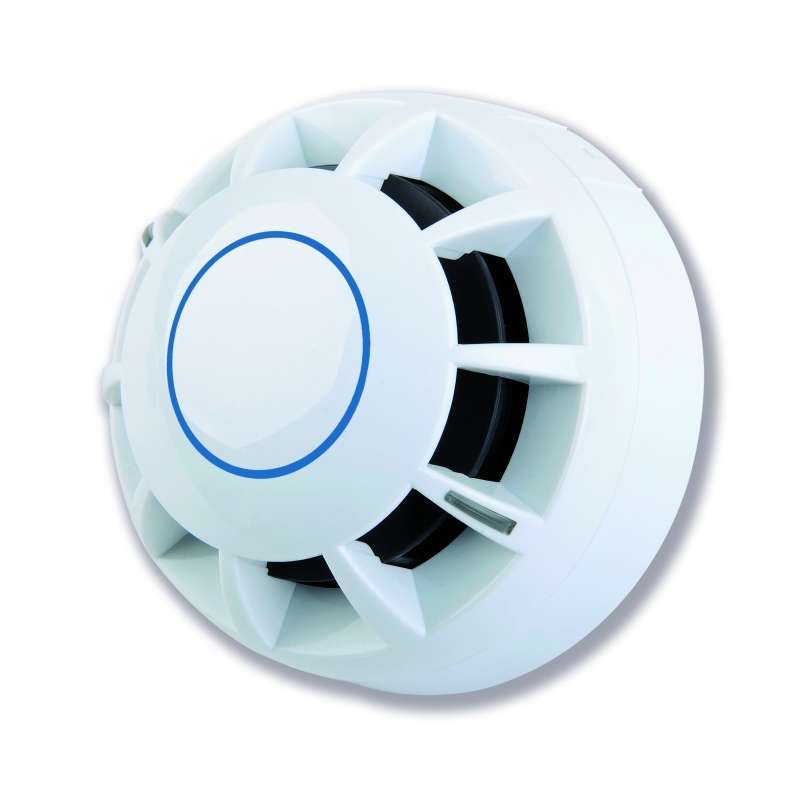

CAST Programmable Multisensor Detector
CAST Programmable Multisensor Detector is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- A high-quality programmable multi-sensor fire detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
- LPCB certified to EN54-5, 7 & 17 and CEA 4021. Also Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Onboard programmable heat & smoke sensors make it deal for detecting a wide range of fires whilst also reducing false alarms.
- Multiple sensitivity/sensor settings.
- Smart algorithms help reduce false alarms.
- Drift compensation functionality.
- Short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc).
- 5mA typical alarm current (370uA typical quiescent current) @ 22-40V DC.
- Programmable multi-function status LED.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
Technical Specifications
| Approvals/certifications |
Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-5, 7 & 17 and CEA 4021. Also Kiwa Telefication certified to EN54-13 |
|---|---|
| Compatibility |
Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels. |
| Type |
Multi-Sensor. |
| Application/operation |
The CA414 multi-sensor has been designed to offer improved detection and reduced incidences of false alarms, As well as operating independently, the smoke & heat sensors combine to give a sensitive response to free burning fires (when a rise in heat is detected, its sensitivity to smoke is increased). |
| Sensitivity |
Mode 1: High Optical + A2 Heat ; Mode 2: Standard Optical; Mode 3: Standard Optical +A2 Heat; Mode 4: Low Optical + A2 Heat; Mode 5: Class A1R Heat. |
| Supply wiring |
2-wire, polarity sensitive. |
| Supply/operating voltage |
22 to 40V DC. |
| Quiescent current |
370µA typical @ 22 to 40V DC. |
| Alarm current |
5mA typical (LEDs illuminated) @ 22 to 40V DC. |
| Indicators |
2 LED indicator strips emitting red light when in alarm offering 360º visibility. Optional remote LED. |
| Connections |
Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen. |
| Product dimensions (mm) |
102.2mm diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base). |
| IP Rating |
IP42. |
| Weight |
99g (not in base); 154g (in base). |
| Operating conditions/temperature |
-20ºC to +85ºC. |
