Hochiki Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI

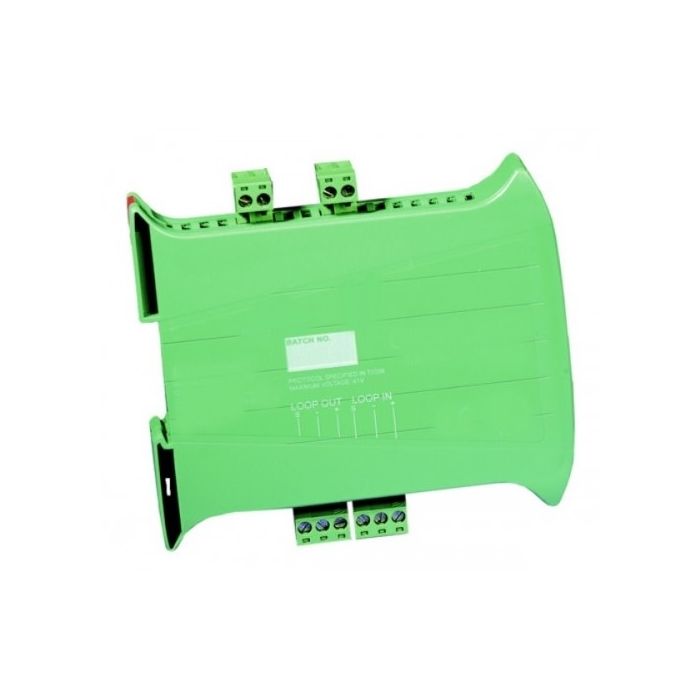

{"id":7631258615868,"title":"Hochiki Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI","handle":"hochiki-intrinsically-safe-compatible-dual-zone-monitor-din-enclosure-with-sci","description":"\u003cp\u003eModel CHQ-DZM\/DIN(SCI)-IS is Dual Zone Module which is fully compatible with Hochiki's ESP analogue addressable protocol and I.S. equipment. It is supplied as a DIN Rail mountable module, a boxed version is also available. Addressing is achieved via simple DIL switches.\u003c\/p\u003e\n\n\u003cp\u003eThe device is designed to allow up to 40 (20 per zone) Conventional I.S. CDX Range detectors (SLR-E-IS or DCD-1E-IS) in the hazardous area to be interfaced to Hochiki's ESP analogue addressable system within the safe area.\u003c\/p\u003e\n\n\u003cp\u003eThe conventional zones on the CHQ-DZM\/DIN(SCI)-IS do not support any line continuity options; therefore if Call Points are being interfaced they should be wired at the beginning of the zone. \u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Single loop address\n\u003cbr\u003e● Requires an auxiliary 24 V dc supply\n\u003cbr\u003e● Supports two independent zones of Hochiki I.S. Conventional Detectors\n\u003cbr\u003e● Both zones fully monitored for short\/open-circuit\n\u003cbr\u003e● Boxed module version also available\n\u003cbr\u003e● Both models feature an integral short-circuit isolator\n\u003cbr\u003ePlease note: that this module should only be installed in the safe area.\u003c\/p\u003e","published_at":"2024-06-07T11:18:16+01:00","created_at":"2024-06-07T11:18:16+01:00","vendor":"Hochiki","type":"Addressable I\/O Modules","tags":["Addressable","Addressable I\/O Modules","Fire \u0026 Smoke","Fire Detection","Fire Safety","Hochiki","Pre-order","Type: Fire Alarm"],"price":18411,"price_min":18411,"price_max":18411,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41813147582524,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"CHQ-DZM\/DIN(SCI)-IS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hochiki Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI","public_title":null,"options":["Default Title"],"price":18411,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/chq-dzm-din-sci-is.jpg?v=1719219106"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/chq-dzm-din-sci-is.jpg?v=1719219106","options":["Title"],"media":[{"alt":null,"id":29550865645628,"position":1,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/chq-dzm-din-sci-is.jpg?v=1719219106"},"aspect_ratio":1.0,"height":700,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/chq-dzm-din-sci-is.jpg?v=1719219106","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eModel CHQ-DZM\/DIN(SCI)-IS is Dual Zone Module which is fully compatible with Hochiki's ESP analogue addressable protocol and I.S. equipment. It is supplied as a DIN Rail mountable module, a boxed version is also available. Addressing is achieved via simple DIL switches.\u003c\/p\u003e\n\n\u003cp\u003eThe device is designed to allow up to 40 (20 per zone) Conventional I.S. CDX Range detectors (SLR-E-IS or DCD-1E-IS) in the hazardous area to be interfaced to Hochiki's ESP analogue addressable system within the safe area.\u003c\/p\u003e\n\n\u003cp\u003eThe conventional zones on the CHQ-DZM\/DIN(SCI)-IS do not support any line continuity options; therefore if Call Points are being interfaced they should be wired at the beginning of the zone. \u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Single loop address\n\u003cbr\u003e● Requires an auxiliary 24 V dc supply\n\u003cbr\u003e● Supports two independent zones of Hochiki I.S. Conventional Detectors\n\u003cbr\u003e● Both zones fully monitored for short\/open-circuit\n\u003cbr\u003e● Boxed module version also available\n\u003cbr\u003e● Both models feature an integral short-circuit isolator\n\u003cbr\u003ePlease note: that this module should only be installed in the safe area.\u003c\/p\u003e"}
