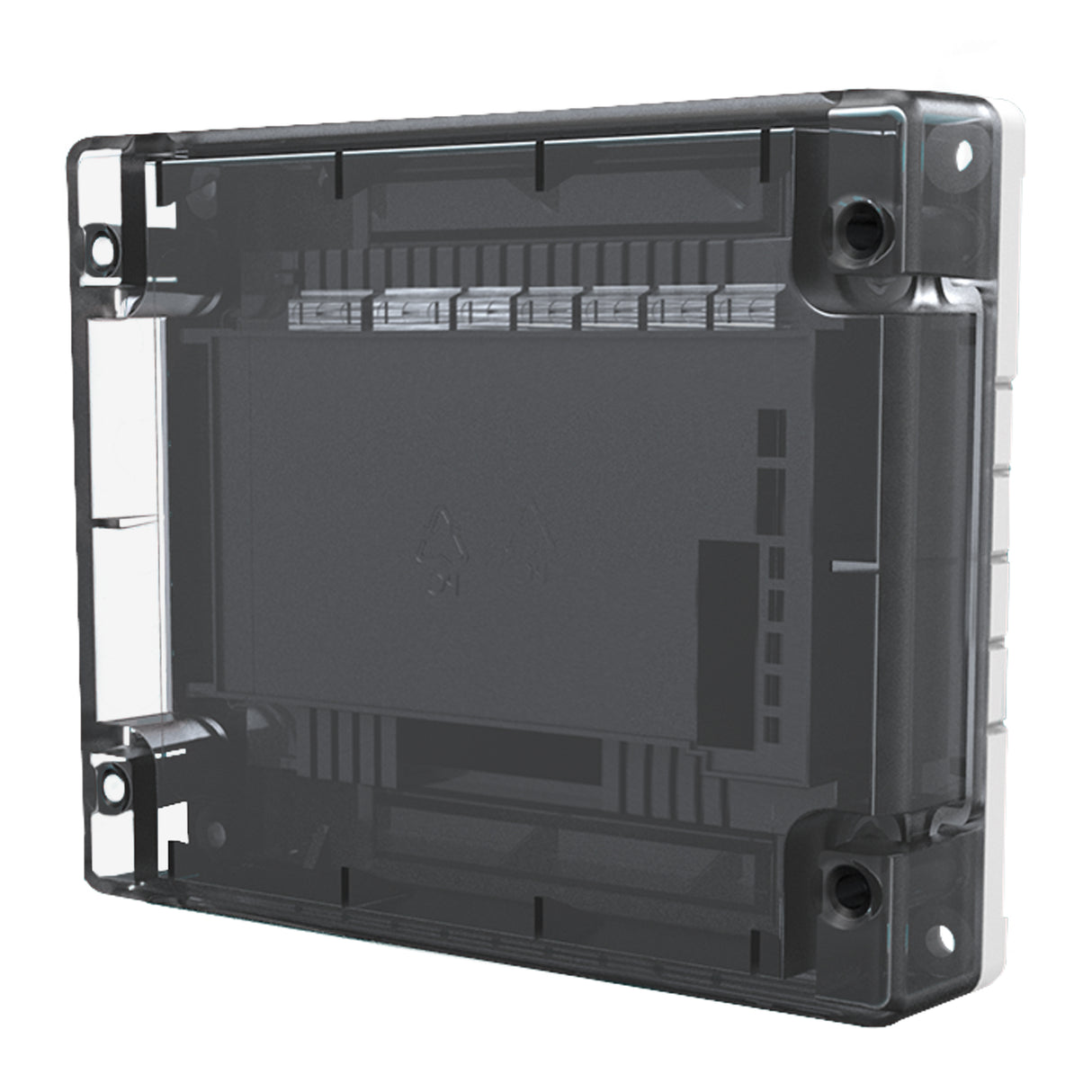

Hochiki Dual Zone Monitor with SCI

{"id":7631258419260,"title":"Hochiki Dual Zone Monitor with SCI","handle":"hochiki-dual-zone-monitor-with-sci","description":"\u003cp\u003eModel CHQ-DZM(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, when used in conjunction with the optional LCMU.\u003c\/p\u003e\n\n\u003cp\u003eFull monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM(SCI) at all times. The CHQ-DZM(SCI) utilises simple DIL switches for reliable addressing. It is available as an OEM version (as illustrated above) and also as a DIN Rail mountable module (CHQ-DZM\/DIN(SCI)). Both models feature an integral short-circuit isolator.\u003c\/p\u003e\n\n\u003cp\u003ePlease note: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.\u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Single loop address\n\u003cbr\u003e● Supports two independent zones of conventional detectors\n\u003cbr\u003e● Both zones fully monitored for short\/open circuit\n\u003cbr\u003e● Requires an auxiliary 24 V dc supply\n\u003cbr\u003e● DIN rail version available\n\u003cbr\u003e● Both models feature an integral short-circuit isolator\n\u003cbr\u003e● Approved by LPCB\u003c\/p\u003e","published_at":"2024-06-07T11:18:12+01:00","created_at":"2024-06-07T11:18:12+01:00","vendor":"Hochiki","type":"Addressable I\/O Modules","tags":["Addressable","Addressable I\/O Modules","Fire \u0026 Smoke","Fire Detection","Fire Safety","Hochiki","Pre-order","Type: Fire Alarm"],"price":9341,"price_min":9341,"price_max":9341,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41813147418684,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"CHQ-DZM(SCI)","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hochiki Dual Zone Monitor with SCI","public_title":null,"options":["Default Title"],"price":9341,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/CHQ-DZM_SCI__02.jpg?v=1718796186"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/CHQ-DZM_SCI__02.jpg?v=1718796186","options":["Title"],"media":[{"alt":null,"id":29494868115516,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/CHQ-DZM_SCI__02.jpg?v=1718796186"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/CHQ-DZM_SCI__02.jpg?v=1718796186","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eModel CHQ-DZM(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, when used in conjunction with the optional LCMU.\u003c\/p\u003e\n\n\u003cp\u003eFull monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM(SCI) at all times. The CHQ-DZM(SCI) utilises simple DIL switches for reliable addressing. It is available as an OEM version (as illustrated above) and also as a DIN Rail mountable module (CHQ-DZM\/DIN(SCI)). Both models feature an integral short-circuit isolator.\u003c\/p\u003e\n\n\u003cp\u003ePlease note: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.\u003c\/p\u003e\n\n\u003cp\u003eKey Features:\u003c\/p\u003e\n\n\u003cp\u003e● Single loop address\n\u003cbr\u003e● Supports two independent zones of conventional detectors\n\u003cbr\u003e● Both zones fully monitored for short\/open circuit\n\u003cbr\u003e● Requires an auxiliary 24 V dc supply\n\u003cbr\u003e● DIN rail version available\n\u003cbr\u003e● Both models feature an integral short-circuit isolator\n\u003cbr\u003e● Approved by LPCB\u003c\/p\u003e"}
