Best Seller
Chain Actuators

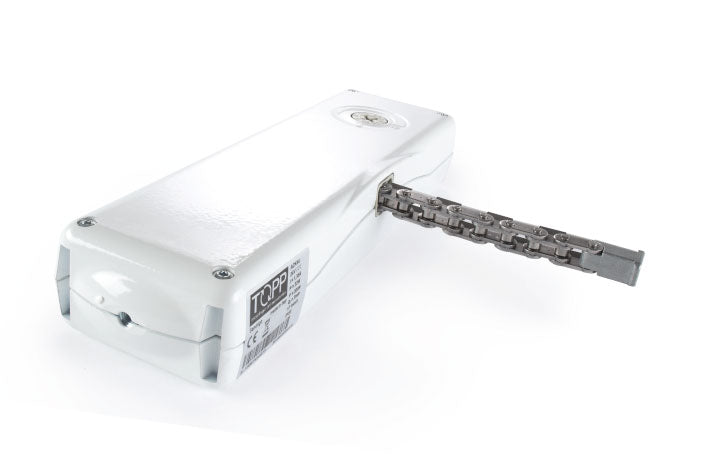

TOPP ACK5 Chain Window Actuator 400mm

Product Code: ACK5/3A19902
£117.50 excl. VAT
Voltage
Colour: White

1-2 Days Delivery

Description

Topp ACK5 chain window actuator is a component of an electric window opening system. TOPP ACK5 Chain Window Actuator is constructed with a double-link chain made of stainless steel, contained in a die-cast body of aluminium alloy coated by epoxy powders, Supplied with the bracket to mount the chain to the window for smoke venting purposes.

Features of the ACK5 electric window chain acuator

  • Power 230 V 50 Hz, or, alternatively, 24 V DC Maximum applicable capacity 300 N.

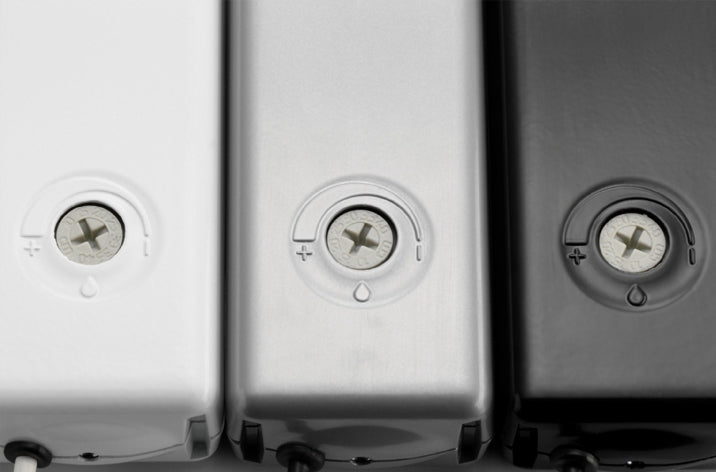

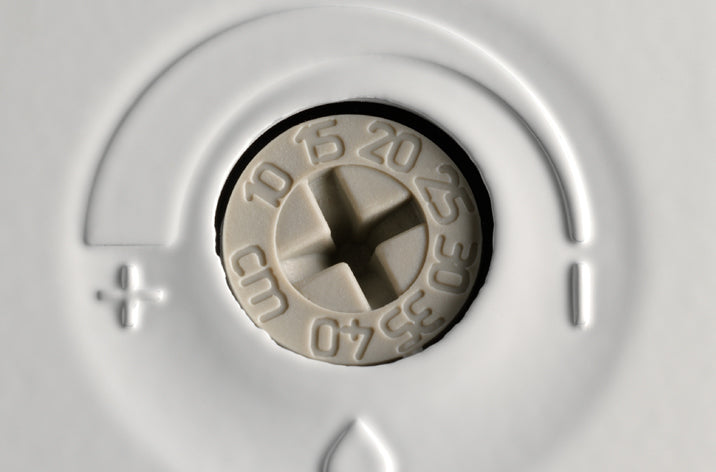

  • Max. stroke 400 mm with adjustment to 7 positions (100, 150, 200, 250, 300, 350, 400 mm) with selector knob.
  • Electronic, with incorrect installation warning buzzer.
  • Electrical equipment protection rating IP55.
  • CE Mark.
  • Upon request are also available a version complying with the EN12101-2 standard for smoke and heat evacuation systems and a synchronizable version designed for the simultaneous operation of 2 actuators mounted on the same window.

What's Included?

  • 1x ACK5 Actuator - available in white, silver or black
  • 1x Chain Bracket for window mounting
  • 1x Chain Bracket fixings
  • 1x Instruction Manual

**Ensure AOV windows already installed which require actuators are tested in accordance with BS EN 12101 : Part 2, with the necessary CE mark. Inbuild Online supplies a range of actuators complying with BS EN 12101 : Part 2. The AOV window frame manufacturer should have tested with the actuator range as part of the CE mark for the window. Where requested, Inbuild Online can supply a BS EN 12101 Part 2 AOV window at an additional cost.

Any advice or recommendation given by Inbuild Online to the Buyer or its employees or agents as to the application or use of the Goods is followed or acted upon entirely at the Buyer’s own risk and accordingly, the Seller shall not be liable for any such advice or recommendation. Please satisfy yourself that the goods stated are suitable for the application intended. We recommend that you consult with the relevant approving bodies to gain approval prior to its application.

*** Data sheet states ACK4 but it is confirmed as the correct data sheet for the ACK5

Download Data Sheets

Click the PDF to download each individual data sheet.
