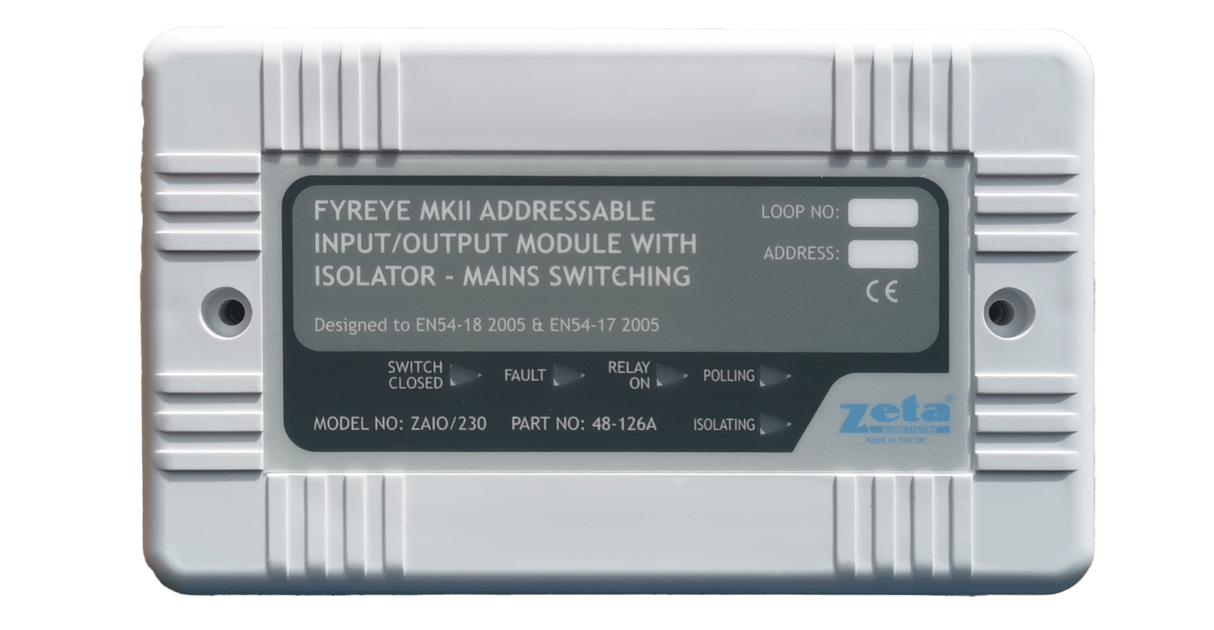

Mains switching I/O unit - Fyreye MKII Protocol, 8A @ 230V AC

{"id":15034260488578,"title":"Mains switching I\/O unit - Fyreye MKII Protocol, 8A @ 230V AC","handle":"mains-switching-i-o-unit-fyreye-mkii-protocol-8a-230v-ac","description":"\u003cp\u003eThe Mains IO Modules are fully monitored loop powered devices which permit the interfacing of third-party equipment with the Fire Alarm Control panel using normally open dry contact connections.\u003c\/p\u003e\n\u003cp\u003eThe connection to the input is monitored for fault (open or short circuit) and Alarm conditions.\u003c\/p\u003e\n\u003cp\u003eThe interface is used to monitor the contacts of an external system which must be interfaced to the Fire Alarm System, for example a Flow Switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in Gas Extinguishing systems, etc.\u003c\/p\u003e\n\u003cp\u003eModule is provided with a loop short-circuit isolator and with a voltage free single pole change over mains rated output. The output relay is always powered directly from the detection loop. It is not required to use an external 24V DC power supply. Relay operation is confirmed by an on-board red LED.\u003c\/p\u003e\n\u003cp\u003eAn 8-way D.I.L switch is provided to configure the module’s address. This value can be set in the range 1 to 125.\u003c\/p\u003e\n\u003cp\u003eThe following programmable functions are available: Input Activation Mode, Delayed Input Alarm Activation, Output Delayed Activation.\u003c\/p\u003e\n\u003cp\u003eThe Simplicity CO 8 range is designed to detect \u0026amp; monitor CO concentrations in places such as warehouses, car parks, tunnels and enclosed buildings where forklifts, cars and delivery trucks can produce deadly amounts of carbon monoxide, in high traffic areas Carbon Monoxide can accumulate in these areas and can be a serious safety and health concern.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eKey Features\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFast Activation Response\u003c\/li\u003e\n\u003cli\u003eLoop Powered\u003c\/li\u003e\n\u003cli\u003eFive Status LEDs provided\u003c\/li\u003e\n\u003cli\u003eLow Power Consumption\u003c\/li\u003e\n\u003cli\u003eModule features an integral short-circuit loop isolator\u003c\/li\u003e\n\u003cli\u003eSingle mains rated relay contact\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-08-04T14:04:49+01:00","created_at":"2025-07-16T10:32:46+01:00","vendor":"Zeta","type":"Addressable I\/O Modules","tags":["Addressable","Addressable I\/O modules","Fire Detection","Zeta"],"price":4683,"price_min":4683,"price_max":4683,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55422063411586,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"HUVO-ZAIO\/230","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mains switching I\/O unit - Fyreye MKII Protocol, 8A @ 230V AC","public_title":null,"options":["Default Title"],"price":4683,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.inbuilduk.com\/cdn\/shop\/files\/ZAIO-230-NEW-1536x797.webp?v=1753357478"],"featured_image":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/ZAIO-230-NEW-1536x797.webp?v=1753357478","options":["Title"],"media":[{"alt":null,"id":65140921205122,"position":1,"preview_image":{"aspect_ratio":1.927,"height":797,"width":1536,"src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/ZAIO-230-NEW-1536x797.webp?v=1753357478"},"aspect_ratio":1.927,"height":797,"media_type":"image","src":"\/\/www.inbuilduk.com\/cdn\/shop\/files\/ZAIO-230-NEW-1536x797.webp?v=1753357478","width":1536}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe Mains IO Modules are fully monitored loop powered devices which permit the interfacing of third-party equipment with the Fire Alarm Control panel using normally open dry contact connections.\u003c\/p\u003e\n\u003cp\u003eThe connection to the input is monitored for fault (open or short circuit) and Alarm conditions.\u003c\/p\u003e\n\u003cp\u003eThe interface is used to monitor the contacts of an external system which must be interfaced to the Fire Alarm System, for example a Flow Switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in Gas Extinguishing systems, etc.\u003c\/p\u003e\n\u003cp\u003eModule is provided with a loop short-circuit isolator and with a voltage free single pole change over mains rated output. The output relay is always powered directly from the detection loop. It is not required to use an external 24V DC power supply. Relay operation is confirmed by an on-board red LED.\u003c\/p\u003e\n\u003cp\u003eAn 8-way D.I.L switch is provided to configure the module’s address. This value can be set in the range 1 to 125.\u003c\/p\u003e\n\u003cp\u003eThe following programmable functions are available: Input Activation Mode, Delayed Input Alarm Activation, Output Delayed Activation.\u003c\/p\u003e\n\u003cp\u003eThe Simplicity CO 8 range is designed to detect \u0026amp; monitor CO concentrations in places such as warehouses, car parks, tunnels and enclosed buildings where forklifts, cars and delivery trucks can produce deadly amounts of carbon monoxide, in high traffic areas Carbon Monoxide can accumulate in these areas and can be a serious safety and health concern.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eKey Features\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFast Activation Response\u003c\/li\u003e\n\u003cli\u003eLoop Powered\u003c\/li\u003e\n\u003cli\u003eFive Status LEDs provided\u003c\/li\u003e\n\u003cli\u003eLow Power Consumption\u003c\/li\u003e\n\u003cli\u003eModule features an integral short-circuit loop isolator\u003c\/li\u003e\n\u003cli\u003eSingle mains rated relay contact\u003c\/li\u003e\n\u003c\/ul\u003e"}
